Custom Design Service
Trap

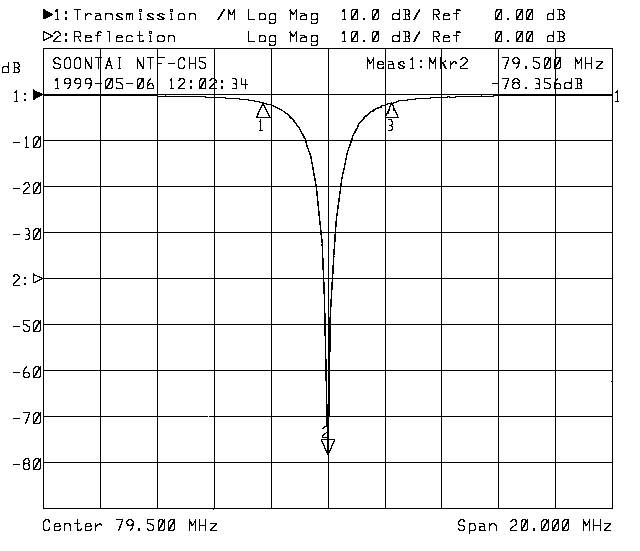

1. Specify the Notch Frequency Mark 2 according to your requirement. [example:] Notch Frequency: 79.5MHz
2. If required, specify the Minimum Rejection at Mark 2. [example:] Rejection: 55dB(min)
3. If needed, please also specify the Maximum Insertion Los at Mark 1 and Mark 3. [example:] Insertion Loss: 3.0dB(max)

* If you have any question, please feel free to Contact Us.
